LS 1
lightshark
Led, LED Effects / Special Effects, Lighting, Lightshark Controllers, LS-1, Theatrical

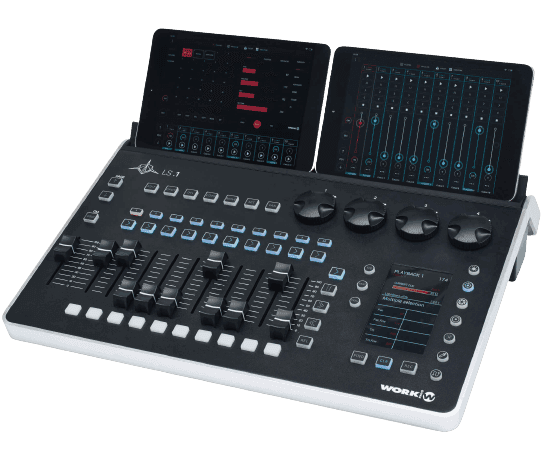

The power of the LightShark engine combined with a complete hardware surface.The LS-1 brings together the best features from the world of the LightShark software engine and marries them to an intuitive, ergonomic hardware control surface. 4 encoders, 10 master playbacks and a color built-in display, combined with a complete set of RGB buttons, give the users a full console platform able to manage incredible shows in a very reduced size, which is compatible with airplane carry-on luggage.
LS-1: Includes (LS-1 & Gooseneck Lamp)The LS-1 includes a built-in stand to hold a device like a tablet on the back of the LS-1, and an extra dedicated USB charging socket on the rear panel to keep associated tablets or Smartphones charged at all times.
Features:
- 8 DMX universes (4096 channels)
- Designed for fast programming, avoiding repetitive tasks.
- Support for diverse protocols including DMX-512, Art-Net, ACN, MIDI, UDP, OSC & HTTP.
- Multiple touch events at the same time.
- 20 Virtual Playback faders.
- Manual crossfade.
- Built-in web server app.
- Up to 1200 cues.
- Built-in FX engine (more than 20 customizable effects).
- Submaster FX size & speed.
Technical Data
| Model | LS 1 |
|---|---|
| Power Supply | 90-240V 50/60Hz |
| DMX Universes | 8 |
| Protocols supported | ArtNet, sACN, DMX, OSC, UDP, MIDI |
| Direct DMX Universes | 2 |
| USB Ports | 2 (1 for data, 1 for change) |
| External Lamp Port | 1x XLR 5V |
| DMX Ports | 2x 3-pin XLR + 2x 5-pin XLR |
| Screen | 4,5″ TFT Color |
| Access Point WiFi | 2.4GHz |
| Power supply connector | Neutrik TrueOne |
| Dimensions (W x H x D) | 430 x 100 x 330 mm |
| Weight | 3.7 kg |
