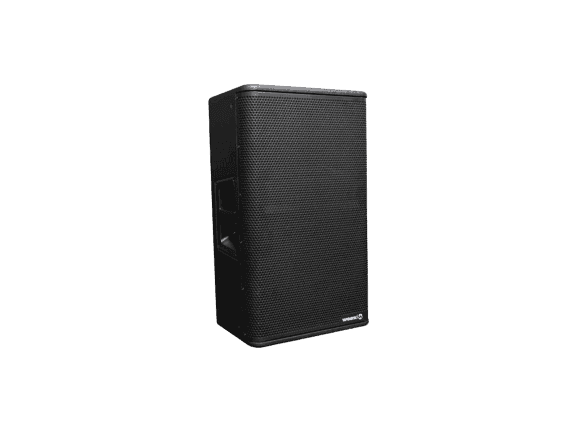

ENTAR 10A
workpro-sound
10'' self-powered loudspeaker
ENTAR 10A is a two-way self-powered loudspeaker that incorporates a 700W amplifier, made of wood. It consists of a 10'' loudspeaker with a 2'' voice coil and a 1.35'' compression driver, and incorporates a signal processing DSP. Thanks to this DSP, it is possible to select 4 equalization presets, 3 HPF filters with selectable frequency, tone control (treble and bass) and differentiated preset for use as a floor monitor or placed on a support. It has an insertion vessel for a 35 mm support that allows 0º/10º angulations and rigging fixation points. Incorporates 2 Mic/Line inputs with level control and mix function.
Features:
- 350W + 350W amplifier.
- 15-inch Woofer + 1.35-inch Driver.
- Signal processing DSP.
- Made of plywood.
Technical Data
| Model | ENTAR 10A |
|---|---|
| Type | 2-Way. Class D amplifier |
| Power | 700W amplifier. |
| LF Transducer | 10'' Woofer; 2'' Voice Coil |
| HF Transducer | 1.35'' compression driver |
| DSP | 4 Presets, 3 HPF Filters, Bass / Treble Curve Adjustment |
| SPL Max | 126 dB |
| Coverage Angle (H x V) | 85.2º x 53.5º |
| Frequency Range | 60 Hz - 20 KHz |
| Connections | 1 x Combi XLR3/Jack TRS 1/4'' female, 1 x XLR3 female, 1 x XLR3 male |
| Enclosure material | Plywood and metal grill |
| Inserts / Rigging | Insertion: 35 mm - 0°/10° angulation; Rigging |
| Power supply | AC 240 V / 50 Hz ** (120V ON REQUEST) |
| Colour | Black |
| Dimensions | 560 x 325 x 310 mm |
| Weight | 14.2 Kg |
