290mm-Square Truss
G-Truss

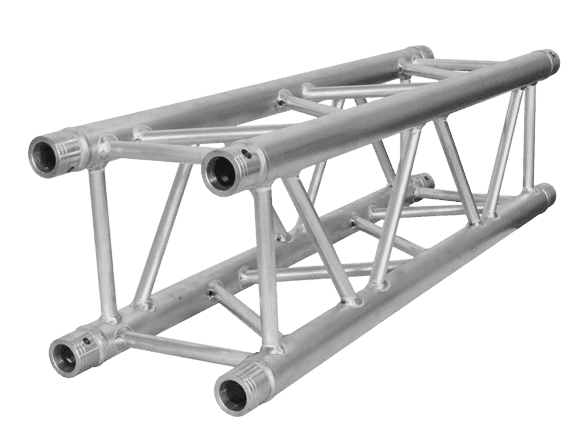

Our 290mm GT-Truss (GT-290) is a 4-point truss system.
This provides optimum volume and load capacity for its construction size and a tube diameter of 50mm. This system is connected via a special conical connector system, which is joined together to a complete form fit by means of a copper hammer, creating optimal traction. It is also characterized by a minimum transport volume and the special lightweight design.
Technical Data
| Model | 290mm-Square Truss |
|---|---|
| Main Tube Section | 50 x 2 mm |
| Main Tube Alloy | EN AW 6082T6 |
| EN AW 6082T6 | 20 x 2 mm |
| Braces Alloy | EN AW 6082T6 |
| weigth | 4,368 lb/ft |
| Surface Area Complete Truss | 1,8693 in2 |
| Coupling System | CBC50E |
| 1.64 feet - Weigth | 11,464 lb |
| 3.28 feet - Weigth | 17,637 lb |
| 6.56 feet - Weigth | 26,455 lb |
| 9.84 feet - Weigth | 35,715 lb |
| 1.64 feet - Weigth | 1,4867 lb |
| 3.28 feet - Weigth | 2,97 lb |
| 6.56 feet - Weigth | 5,9399 lb |
| 9.84 feet - Weigth | 8,9099 lb |
